Foam Box

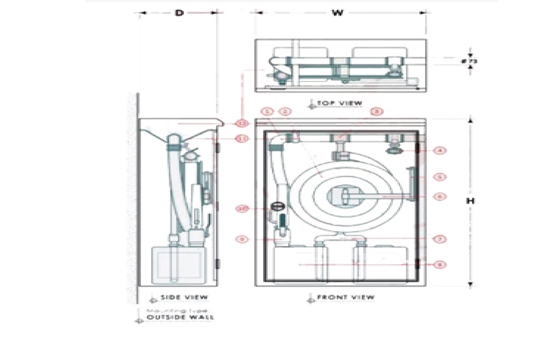

Foam Box is mode from steel or stainless steel hairline or mirror finishing with various thickness ranging I-2mm. The steel box is powder painted electrostati-cally and heated in 200 degree to guaran-tee rustproof, the box is mounted on the wall. It contain hose reel with a diameter of 1.5-Inch synthetic hose and 2-inch brass valve. also it contain a foam induc-tor to mix the water with foam In Ax ratio that can extinguish the fire, and a special nozzle with 20-meter range and 20•Litres containers of 3% or 6 foam concentration.


Model Cabinet Dimensions (mm)
Width Height Depth
KF-CRO - 700 700 1120 300
KF-SMO - 700 700 1120 300
